M16 A code Female Straight Overmoulding Connector

Screw lock according to IEC61076-2-106 standard

Contacts: from 3pin to 24pin a coded

8 Din AISG compliant

Protection level IP67

Pre-molded with PVC/PUR cable, length can be customized

EMC shielding

RoHS, REACH compliant

SEND INQUIRY NOW

Product description

General Data
Product type	M16 Overmoulded Connectors
Standard	IEC61076-2-106
Coding	A
Gender	Female
IP range	IP67
Locking type	Screwable
Mounting type	Straight
Technical Data
Shielding	Shielded
working temperature	-25° C ~ 80° C
Insulation resistance	>=100M Ohm
Contact resistance	＜=5M Ohm
Application	Sensor/ Actuator
Material Data
Insulator material	PA66, UL94
Insulator color	Black
Housing material	TPU, UL94
Coupling nut /-screw material	Brass with nickle plating
Signal contact material	Brass with gold plating
Sealing material	Silicone
Assembly type	Pigtail
Cable Jacket	PVC / PUR
Mating cycles	>=100
Cable Flamability	UL94 V0
Cable color	Black
Compliance	Rohs
Electrical Specs
Contacts No.	3	4	5	6	7	8
Rated Voltage	300V	300V	300V	250V	125V	60V
Rated Current	12A	12A	12A	5A	5A	5A
Wire Gauge(AWG)	18	18	18	18	18	18
Contacts No.	12	14	16	19	24
Rated Voltage	60V	60V	60V	60V	60V
Rated Current	3A	3A	3A	3A	1A
Wire Gauge(AWG)	24	24	24	24	26

M16 3

M16 A coded female pinout

M16 Series Features

Due to continuous development and improvement, the M16 connector is currently the best option for designers searching

for a reliable, cost-effective screw-locking connector that can allow up to 24 contacts with or without EMI shielding.

This connector style combined durable design and excellent environmental resistance, which make the M16 becoming

widely used in equipment, measurement, and sensors for interior use with higher pin count requirements than M8 and M12

sensor connectors. Pneumatic controls, gas and pressure measurement, torque sensors, and motor speed regulators

are some of the other applications.

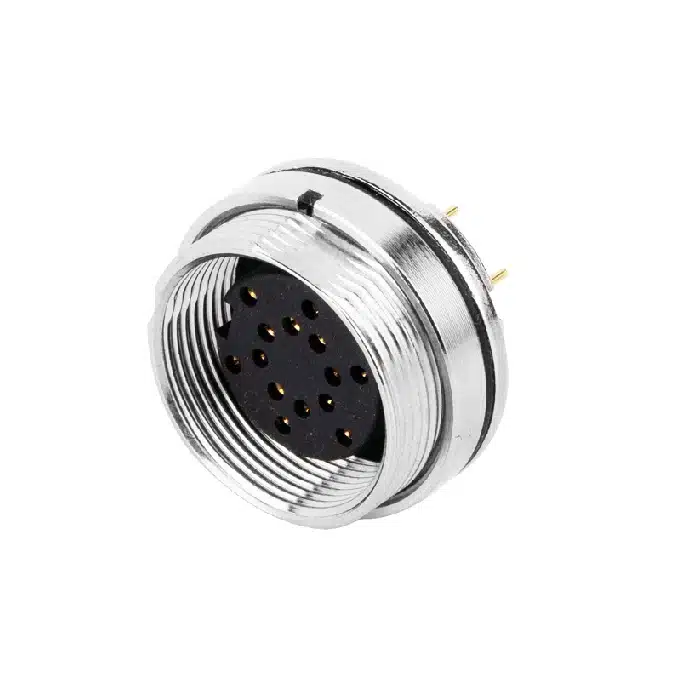

A variety of options for cable connecting type with straight or right-angled connectors which are terminated by soldering,

with screws and crimp. Overmoulded cables are optional, and panel mount type with front or rear fastening as standard

for solder contact versions and front fastening for dip solder contacts to PCBs are also available.

M16 series highlights:

Pin count: 2 to 24

Mating cycles: >500

Degree of protection: IP67

Suitable for 5G network, AISG C485 compliant

Data transmission up to 10Gbits/s

Termination: solder or crimp

Locking technology: screw lock

Shielding: 360 degree available

FAQ

1. How can I get a quote for connectors or cables?

If you need a customized solutions, please kindly release drawings for evaluation. If no existing drawing, please send pictures, specs or samples for reference.

2. What’s your regular lead time for cables?

Generally one week for standard products, if need customized, about 2-4 weeks. We’ll send order confirmation with accurate shipping date after placing orders.

3. Do you have MOQ for connectors& cables?

Per market requirements trends, we don’t set up MOQ, even you only need 1pcs, we can make it.

4. Can you offer design service? OEM or ODM?

Yes, we’re capable to help design base on your requirements, offer 2D and 3D drawings, and prototype service for your confirmation before production.

5. Are your products Rohs and Reach compliance?

Yes, 100% RoHs and Reach compliance. We can provide the materials test reports.
