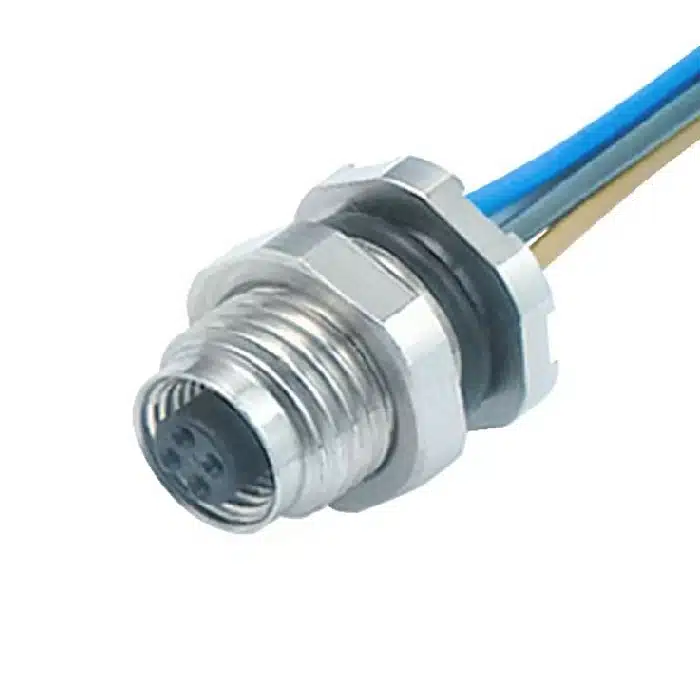

M5 Female Panel rear mount Connector solder connection

Screw lock, easy installation

Contacts: 3pin, 4pin

Protection level IP67

Solder with single wires

RoHS, REACH compliant

SEND INQUIRY NOW

Product description

General Data
Product type	M5 Panel Mount Connectors
Standard	IEC 61076-2-105
Coding	A
Gender	Female
IP range	IP67 in lock up
Locking type	Screw lock
Mounting type	Rear mount
Material Data
Insulator material	TPU, UL94
Insulator color	Black
Housing material	/
Coupling nut /-screw material	Brass with nickle plating
Signal contact material	Brass with gold plating
Sealing material	Silicone
Assembly type	solder connection
Technical Data
Shielding	Unshielded
working temperature	-25° C ~ 80° C
Insulation resistance	>=100M Ohm
Contact resistance	<=5M Ohm
Application	Sensor/ Actuator
Fastening thread	M5*0.5
Mating cycles	>=100
Cable Flamability	UL 94v-0
Cable color	Customized
Compliance	Rohs
Electrical Specs
Contacts No.	3	4
Rated Voltage	60V	60V
Rated Current	1A	1A
Wire Gauge(AWG)	26	26

M5 6 M5 female

M5 series features

The M5 connector is also called micro 5 connector, which is a miniature circular connector with screw

locking. With diameter 5mm, it’s ideal for application in tight space. M5 connector is developed base

on DIN EN 61076-2-105, withstands harsh industrial environments with high resistance to shock,

vibration, and temperature fluctuations.

They’re straight and angled pre-molded cables available, as well as panel mount and PCB mount.

Pinout 3pin and 4pin with 1A/60V, suitable for low power application, protection level IP67. M5

connectors are widely used in industrial automation, robotics, automotive, medical device,

aerospace, and defense.

l Pin count: 3pin, 4pin male and female

l Pre-molded type, PCB type and Panel mount solder contacts

l Degree of protection: IP67

l Locking type: screw lock

l Rated current, voltage: 1A/60V
